3G/4G-LTE 802.11n Wi-Fi Router

Automatic WAN Redundancy

Exceptional Performance

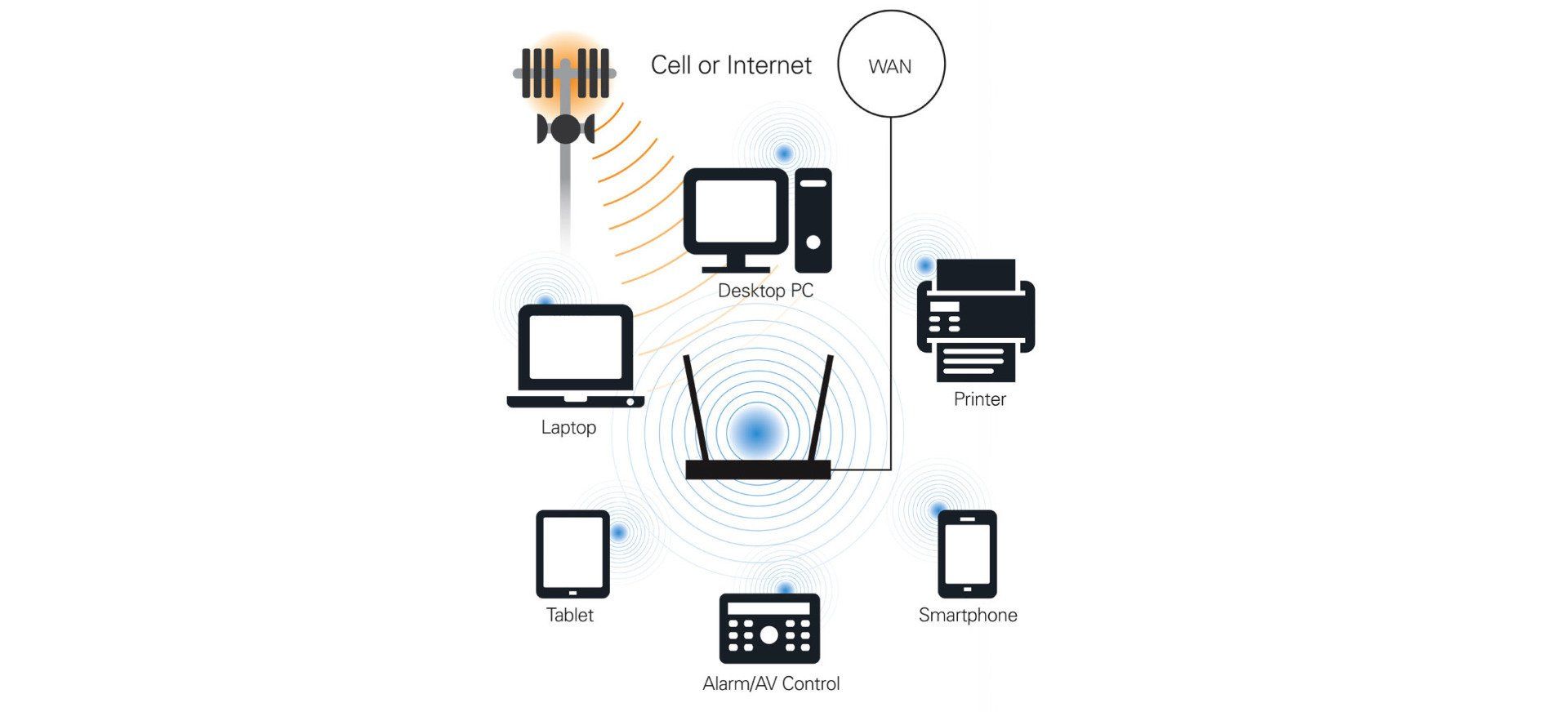

ReadyNet LTE500 4G-LTE Wireless N Router is a combined wired/wireless network connection device designed to be the primary Internet access for various applications, such as small business/home offices, kiosks, SDWAN gateways,
IoT devices, and alarm systems – anywhere Internet access is needed.

Ethernet & WAN Automatic Failover


Detachable External Antennas

802.11n Wireless Router

• Ethernet and WAN automatic failover
• Metal case – wall mountable
• Integrated 3G/4G modem
• Supports FDD LTE Bands of B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28, TDD LTE bands of B38/B39/B40/B41
• Hardware NAT, DHCP, security and layer 2 and 3 QoS
• 2X2 2.4GHz 802.11 b/g/n (300 Mbps)
• Detachable external antennas for LTE and Wi-Fi with
SMA connectors
• 1 10/100M auto-negotiation RJ45 WAN port, 4 10/100M
auto-negotiation RJ45 LAN ports
• Built-in firewall features, IP, MAC, URL filtering which
flexibly controls online access and time

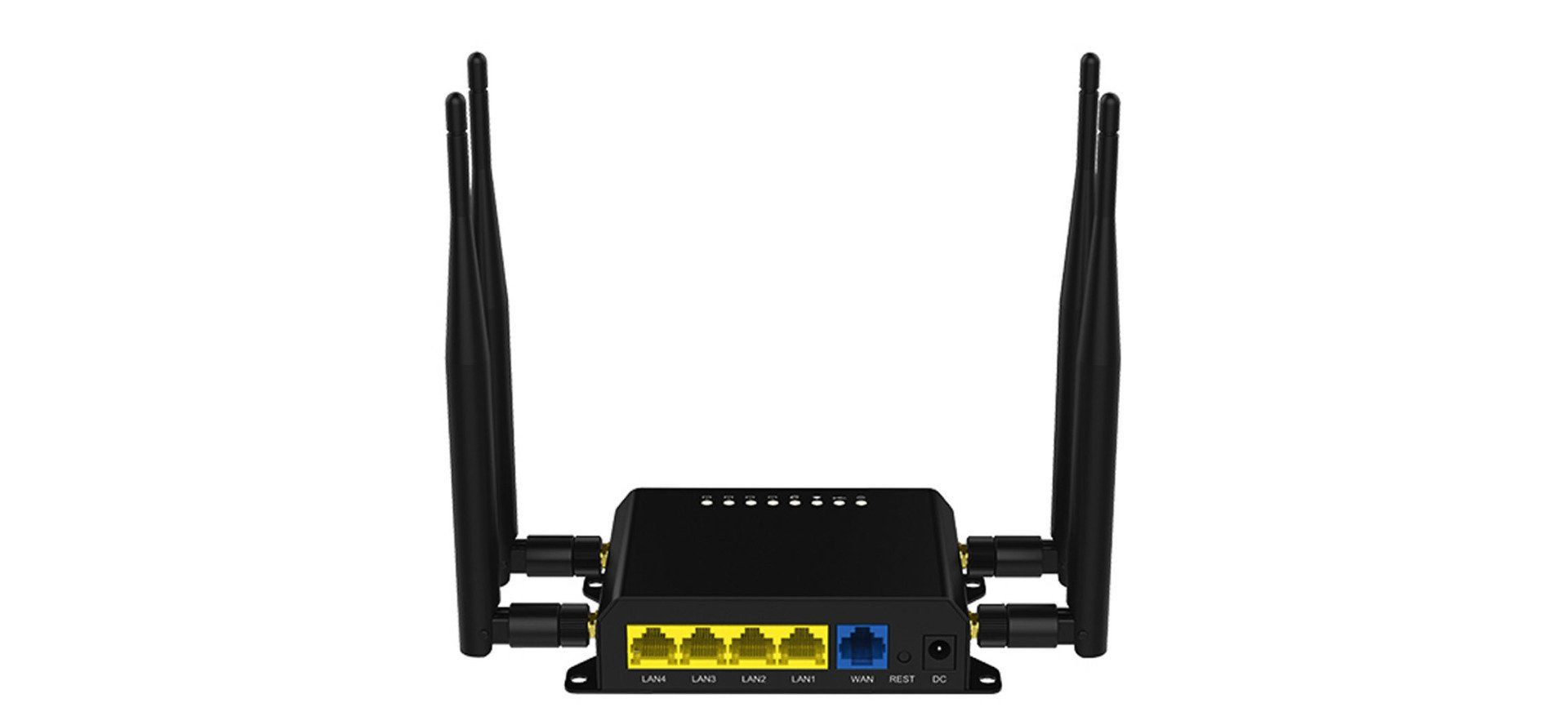

Physical Interfaces
1 RJ-45 port for WAN (Ethernet 10/100 Base-T)
4 RJ-45 ports for LAN (Ethernet 10/100 Base-T)
4 extenal antennas for LTE and Wi-Fi
1 Port for power adapter
1 Reset button
Firmware Upgrade – OTA
Web Management Interface
Local and Remote Syslog (RFC3164)
SNTP Time Synchronization
Multi-user Level
System Log: Local Log and Remote Log
1 Year Limited Product Warranty
