Managed ATA VoIP Routers

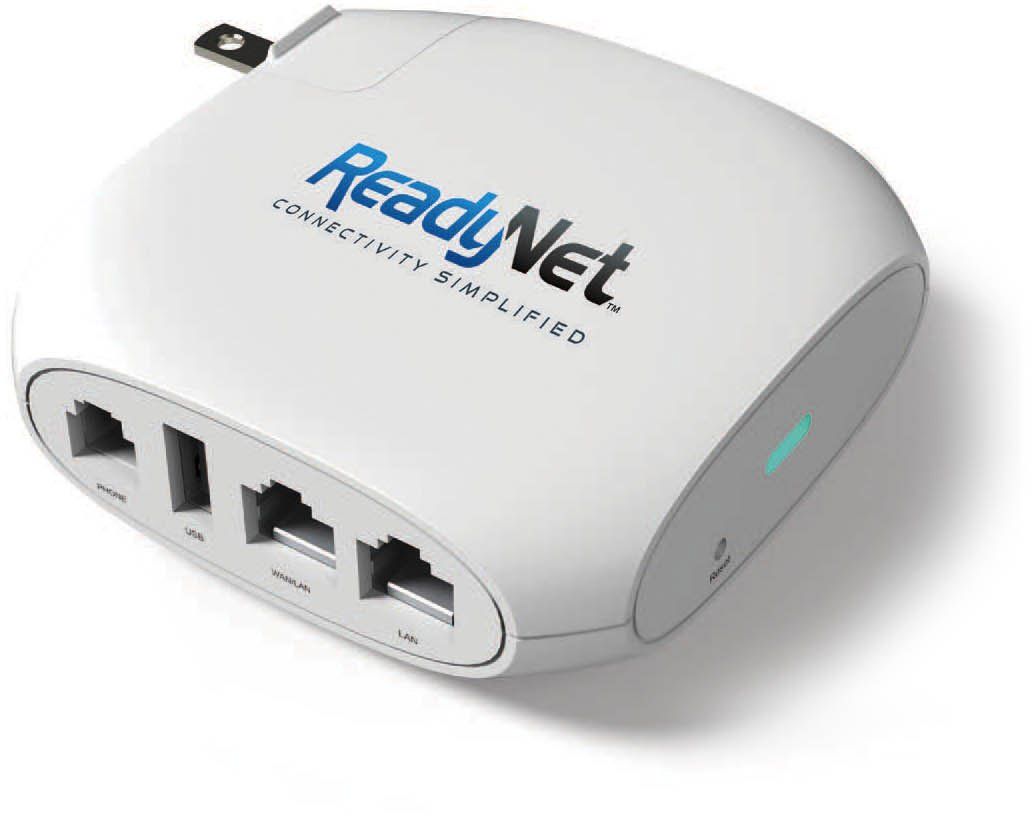

QX300 VoIP ATA Router
1 PORT ANALOG TELEPHONE ADAPTER

ReadyNet’s QX300 Wireless N Router is a combined wired/wireless network connection device with remote management capabilities, an FXS port for connecting voice, and HTTPS for secure connections. It complies with the IEEE 802.11n standard with wireless transmission speeds of up to 300Mbps.

Features

  • One FXS port for VoIP (SIP) and T.38 FAX
  • (1) WAN and (1) LAN 100BASE-T RJ-45 Ethernet Ports (IEEE 802.3)
  • 2T2R 2.4G 802.11n - up to 300Mbps wireless
  • Internal antennas
  • 100Mbps NAT/NAPT speed, DHCP, security and QoS
  • 3-way conference, call hold/forwarding/transfer/waiting
  • Option 66, TFTP, HTTP, HTTPS and TR-069 for provisioning S firewall
  • Firmware upgradeable via web browser

Specifications

  • Physical Interfaces
    • (1) RJ-45 10/100Mbps LAN port
    • (1) RJ-45 10/100 WAN port
    • (1) RJ-11 FXS port
    • (1) USB port
    • IEEE 802.11 b/g/n
  • Management
    • Firmware Upgrade
    • Web Management Interface
    • IVR-driven Management Interface
    • Local and Remote Syslog (RFC3164)
    • Auto Provisioning
    • SNTP Time Synchronization
    • Multi User Level
    • SNMP v2
    • Telnet
    • TR-069
    • System Log: local log and remote log

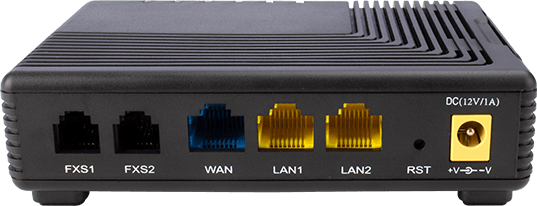

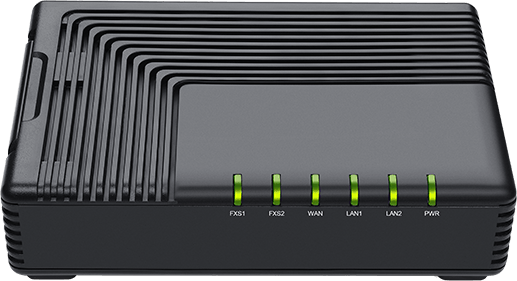

QX202 VoIP ATA Router
2 PORT ANALOG TELEPHONE ADAPTER

ReadyNet’s QX202 VoIP ATA Router provides two phone lines that go where you go. Talk or fax from anywhere you have an Internet connection.

Features

  • Compact size
  • Excellent voice quality
  • SIP proxy server support
  • IP PBX support
  • Real time FAX over IP
  • Up to 2 concurrent VoIP calls
  • 2 Ethernet ports can be routed or switched

Specifications

  • Physical Interfaces
    • 2 RJ-45 10/100 Ethernet ports (routed or switched)
    • 2 RJ-11 FXS ports
    • 1 Power jack
  • Management
    • Upgrade firmware
    • Web management interface
    • IVR-driven management interface
    • Local and remote Syslog (RFC3164)
    • DHCP Option 66
    • Auto Provisioning via TFTP, HTTP or HTTPS
    • SNTP time synchronization
    • Multi-user level
    • SNMPv2
    • TR-069

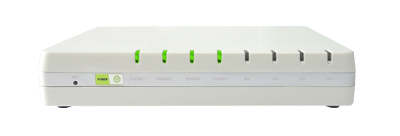

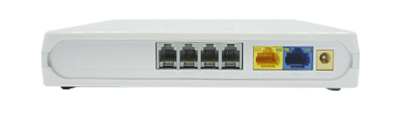

QX204 VoIP ATA Router
4 PORT ANALOG TELEPHONE ADAPTER

The QX204, which has 4 FXS ports, one LAN port and one WAN port, provides 4 SIP lines for users to make calls and is a wire-speed NAT router. It supports T.38 real time FAX and T.30 FAX with G.711.

Features

  • Up to 4 concurrent VoIP calls
  • Real time FAX over IP via T.38 and T.30 FAX with G.711
  • TR-069 CPE management & monitoring protocols
  • Field proven compatibility and stability
  • Very highly affordable and effective 4 FXS ports VoIP CPE

Specifications

  • Physical Interfaces
    • 2 RJ-45 10/100 Ethernet ports (routed or switched)
    • 4 RJ-11 FXS ports
    • 1 Power jack
  • Management
    • Upgrade firmware
    • Web management interface
    • IVR-driven management interface
    • Local and remote Syslog (RFC3164)
    • DHCP Option 66
    • Auto Provisioning via TFTP, HTTP or HTTPS
    • SNTP time synchronization
    • Multi-user level
    • SNMPv2
    • TR-069

QX208 VoIP ATA Router
8 PORT ANALOG TELEPHONE ADAPTER

The QX208, which has 8 FXS ports, one LAN port and one WAN port, provides 8 SIP lines for users to make calls and is a wire-speed NAT router. It supports T.38 real time FAX and T.30 FAX with G.711.

Features

  • Up to 8 concurrent VoIP calls
  • Real time FAX over IP via T.38 and T.30 FAX with G.711
  • TR-069 CPE management & monitoring protocols
  • Field proven compatibility and stability
  • Very highly affordable and effective 8 FXS ports VoIP CPE

Specifications

  • Physical Interfaces
    • 2 RJ-45 10/100 Ethernet ports (routed or switched)
    • 8 RJ-11 FXS ports
    • 1 Power jack
  • Management
    • Upgrade firmware
    • Web management interface
    • IVR-driven management interface
    • Local and remote Syslog (RFC3164)
    • DHCP Option 66
    • Auto Provisioning via TFTP, HTTP or HTTPS
    • SNTP time synchronization
    • Multi-user level
    • SNMPv2
    • TR-069
