GSX1204 4G-LTE Wireless VoIP SMB Gateway

4G-LTE 802.11ac Wi-Fi SMB Gateway  |  Four (4) Analog FXS Ports  |  SFP Fiber Port  |  Dual SIM w/Dual SIM Single Standby
Automatic WAN Redundancy  |  Remote Management (TR-069 & NeXus)  |  Exceptional Performance

The GXS1204 removes the dependency of analog wire-line services on the PSTN by running over IP. Equipment previously connected to POTS lines can now connect to the FXS ports of GSX1204 allowing the device to communicate over IP using a choice of copper, fiber, or cellular WAN connectivity options. Multiple WAN connections together with dual SIMs ensure system reliability resulting in diminished downtime for the customer and increased service levels delivered by the vendor.
The GSX1204 is capable of carrying any traditional analog wireline signal over WAN, LAN, or LTE, including FAX, Machine to Machine (M2M) Data, alarm system signals, Elevator Lines, DTMF signaling tones, voice, analog data modem tones, and enables VoIP over LTE data providing a failover should other systems fail.

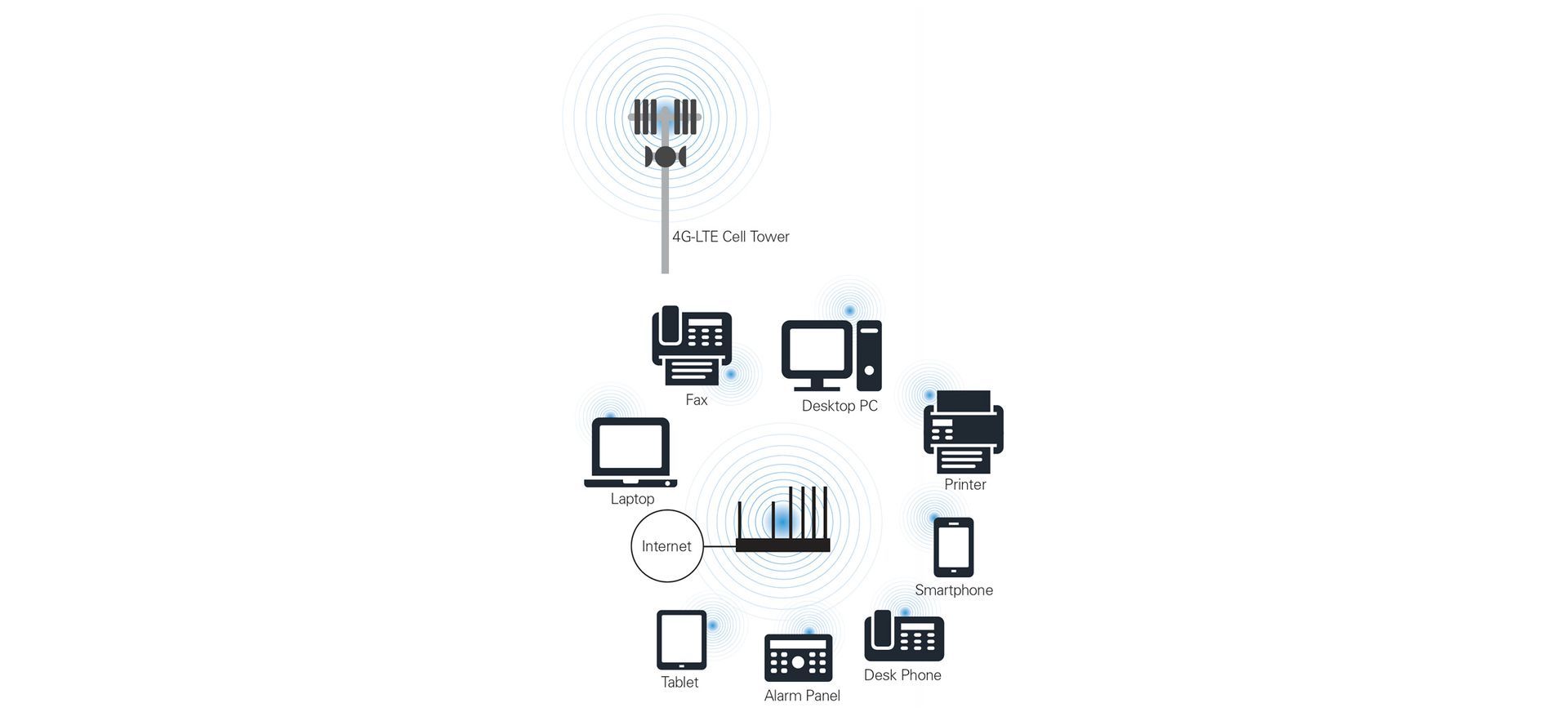

In addition to supporting wire-line equipment, the Gigabit LAN ports and 11AC Wi-Fi interface of the GSX1204 provide connectivity to network equipment used in the SMB environment all in a compact metal enclosure that is easy to install and manage.

Features

  • Integrated 4G-LTE modem
  • LTE-FDD Bands B2/B4/B5/B12/B13/B14/B66/B71
  • WCDMA: Bands 2/4/5
  • Dual SIM
  • WiFi: 802.11 b/g/n/ac, 2*2
  • Built-In NAT Firewall, Defense of DoS/ARP attacks/Port Scan, DHCP/ARP
  • Gigabit SFP/WAN/LAN ports
  • Supports VoIP via FXS ports with SIP and T.38 Fax
  • Compact metal enclosure
  • IPSec//GRE/L2TP/PPTP

Specifications

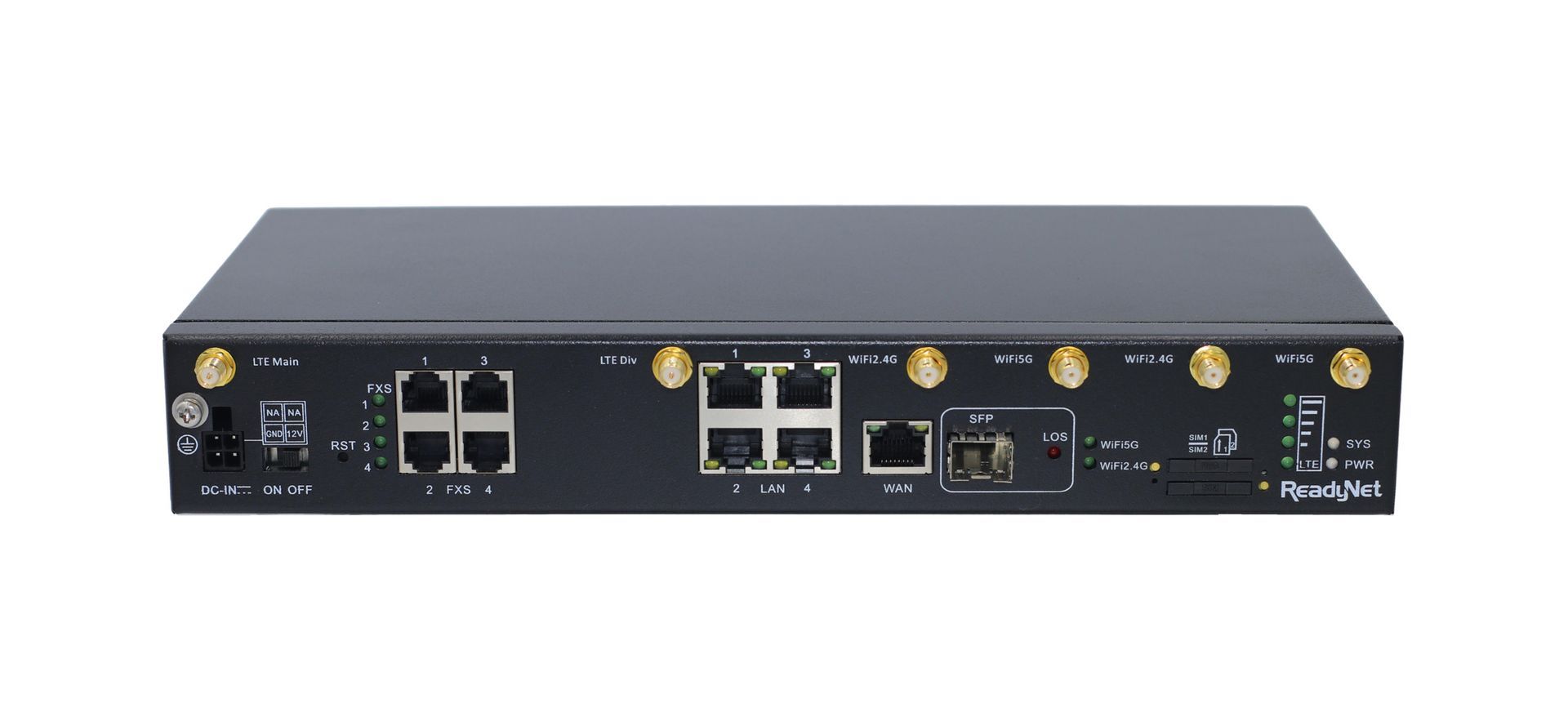

  • Physical Interfaces
    • 1 × 10/100/1000Base-TX WAN/LAN
    • 4 × 10/100/1000Base-TX LAN
    • 1 × SFP (10/100/1000Mbps) WAN
    • 4 × RJ11 ports for FXS
    • 2 × 4G-LTE external antennas with SMA ports
    • 2 × 2.4GHz external antennas
    • 2 × 5Ghz external antennas
    • 2 × Micro SIM slots
    • 1 Port for power adapter
    • 1 Reset button

  • Management
    • Remote Provisioning and Firmware Upgrade
    • Auto provisioning with TFTP, HTTP/HTTPS
    • Multi-level Web management interface
    • TR-069/STUN - Multi Level
    • NeXus ReadyNet realtime cloud management
    • SNMPv2
    • Command line via ssh
